Multy Activating Circulation Sub

A Method of Cost Saving

The Well is on Loss?

No Trip you need any more with
MAC Sub service

you need a Trip to lay down the Motor to use LCM?

With the Invention of Multi-Activation Circulating Subs, it is easy to pump large LCM material into the hole with no concern regarding sensitive, expensive, high-tech tools such as LWD & MWD. The Mechanical MAC Sub is a mid-string circulating tool. It can be run in milling, drilling, and wellbore clean-up strings to improve circulation and assist with hole cleaning, without compromising pressures in the well.

our service
ADVANTAGES

1. Improved Well Cleaning in High Angle Wells

2. Two Ports can Handle complete flow divert

The MAC Sub is the perfect tool for use in ‘High Angle’ and ‘Horizontal’ wells. This will help increase hole cleaning of high angle wells dramatically

All tools have two large circulating ports as standard which greatly reduces the risk of plugging. So, client should not worry about the size of LCM or other materials pumping in well.

The MAC Sub is designed to divert flow from MWD and Motor. This means no restriction in pumping high concentration of LCM material.

3. Full Control for Curing the Loss

4. Removes Trips for Changing BHA

Due to the unique design of the MAC Sub, Client can change the flow from BHA to Ports and when pumping LCM is finished, the flow will be returned to BHA. This means no added trip is required to change BHA to cure the loss. This will reduce costs tremendously.

Easy Method of
ACTIVATING

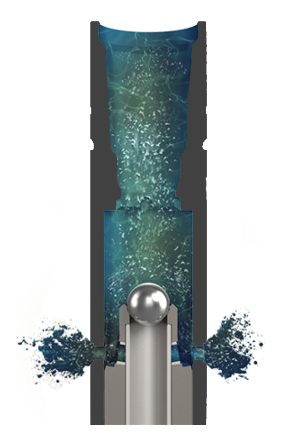

All you need to do is dropping the setting ball into the string and the circulation will be diverted from the sub.

1.Starting Point

2.Valve Activation

Easy Method of
DE-ACTIVATING

After curing the sub, just drop deactivating ballS into the string and the circulation is back from the bit.

1.Valve Deactivation

2.Valve Reset

lET US
SAVE YOUR tIME & MONEY

Saving enormous time in formations with high losses, GETS offers its MAC Sub services along with technical support to make sure clients will benefit from time and cost saving solution  whenever is needed.
